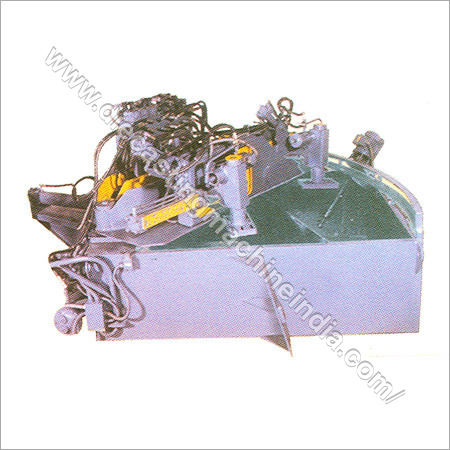

Grafting Machines

Grafting Machines
Grafting Machines
Product Code : 05
Product Description

Being a quality based organization, we are engaged in manufacturing and supplying our clients a technically advanced range of Grafting Machines. Made and designed at our modern machining facility by employing qualitative materials, these machines are used in various industries including automotive, engineering and telecommunications. Our Grafting Machines are known for their impeccable qualities such as functional efficiency, operational fluency, sturdy construction and low maintenance cost. Being a quality centric organization, our machines are ensure to be at par with international quality at the mean time very reasonable in price.

Further Details

Salient Features

  • Separate Graphiting tanks are given with individual stirrer motor to have different water levels on each die.
  • Independent dipping of each die
  • Semi-auto cycle
  • Double front and side pouring

Die Features : Technical Specifications

  • Die Axis Height from ground (mm) : 1000
  • Max. Die Dimension (Dia) mm : 420
  • Max. Total Die Weight (Kg.) : 100
  • Die Thickness (mm) : 200
  • Die opening stroke (mm) : 300
  • Die Rotation (Front Pour) : 0o / 90o
  • Die Tilting (Side Pour) : 0o / 90o

Hydraulic System

  • Tank Volume (Lts.) 250
  • Working Pressure (Kg./cm2) : 70
  • Pump Motor Power (k.w.) : 3.75

Graphiting System

  • Tank Content (Lts.) : 450x2
  • Stirrer Motor Power (k.w.) 0.75 x 2

General Features:

  • Overall Dimension (mm) : 2100x2500x1500
  • Nett Weight of Machine (Kg.) 1850
  • Dry cycle Time (Sec.) 15
